Electrical Base Beacon/ Base Sounder/ Base Sounder-Beacon/ Wall Beacon/ Wall Sounder/ Wall Sounder-Beacon Supply Voltage 15 -28 VDC Standby current 225μA Max. current consumption 3.5mA / 11.4mA1 / 14.7mA1 Max. sound output N/A / 97dB(A) +/-3dB @1metre2
Environmental Specifications • Temperature Range: -25°C to +70°C† • Humidity: Max. 95% relative humidity (non-condensing) • IP Rating: IP24 with low profile (B501AP) base IP44 with deep bases (BRR, BPW) IP65 for MI-BSO-PP-N/I with sealed deep base (WRR) Approvals • Approved to: EN54-3, EN54-17 and CPD
Base Sounder Base sounder Beacon

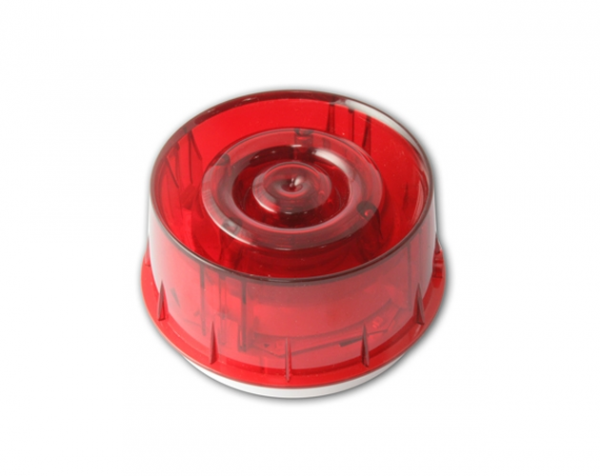

Wall Beacon Wall Sounder Wall Sounder Beacon Height 64mm 64mm 51mm 64mm 64mm Diameter 121mm Weight 200g 202g 238g 168g 238g Body Colour white white N/A red N/A Lens Colour N/A clear red N/A red Light Colour N/A red red N/A red Beacon Flash Rate N/A 1Hx 1Hz N/A 1Hz Number of tones 32 32 N/A 32 32 Volume Settings High, Medium, Low Hight, Medium, Low N/A High, Medium, Low High, Medium, Low Wire Gauge for Terminals 1.5 - 2.5mm2 max
Morley-IAS’s new modular range of Intelligent AV warning devices provides easier system confi guration and fl exibility. A common base across AV and detectors is available, allowing for easier installation and ordering.
These devices are all available with isolators, providing you with a fl exible approach and allowing for easier fault-fi nding on the loop.
